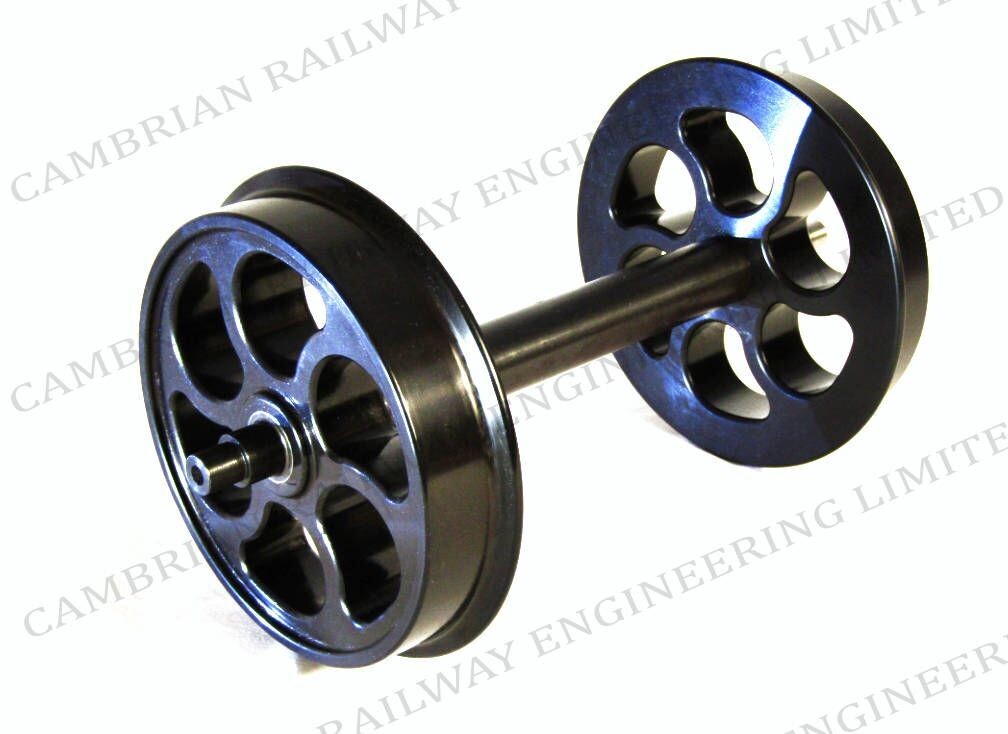

1 assembled set of wheels and axle

Key Features

. Weight of two wheels and axle assembled - 4.7 kg.

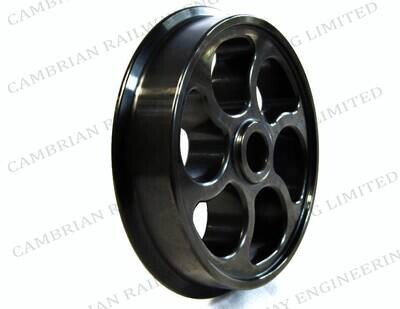

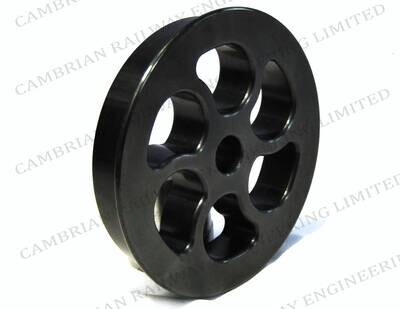

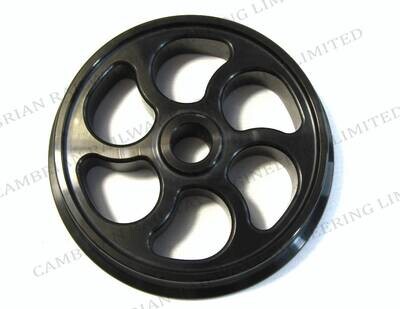

. 6" diameter curled spoke wheels.

. Wheels and axle are chemically blacked for corrosion resistance and appearance.

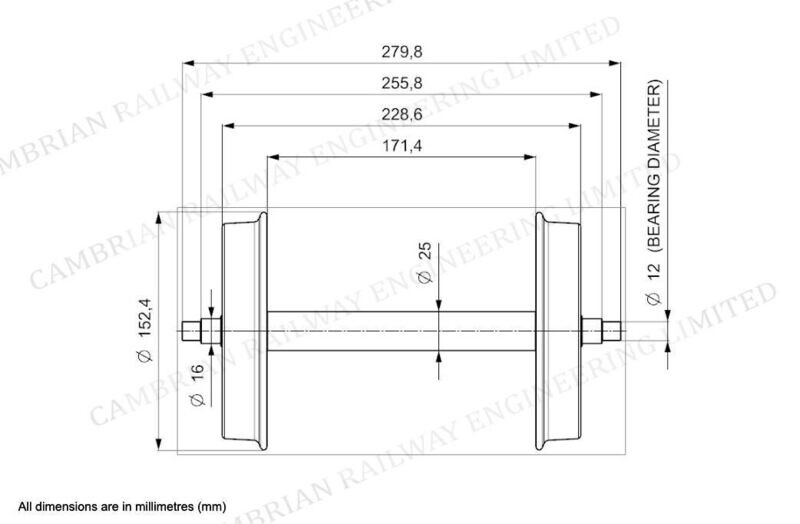

. For overall dimensions - see pictures above.

Description

All our wheels have curled spokes and are machined from solid billets of heat treated high tensile steel. . They are secured to the axles that are also made of heat treated high tensile steel. . This steel was specifically chosen for it's superior performance, corrosion resistance and ability to withstand stressful conditions. . These assemblies conform to the UK 7¼" Gauge Society wheel standards. However we can design and manufacture to alternative gauge requirements upon request, if so, please send us an enquiry using our contact us page and we will be happy to help.

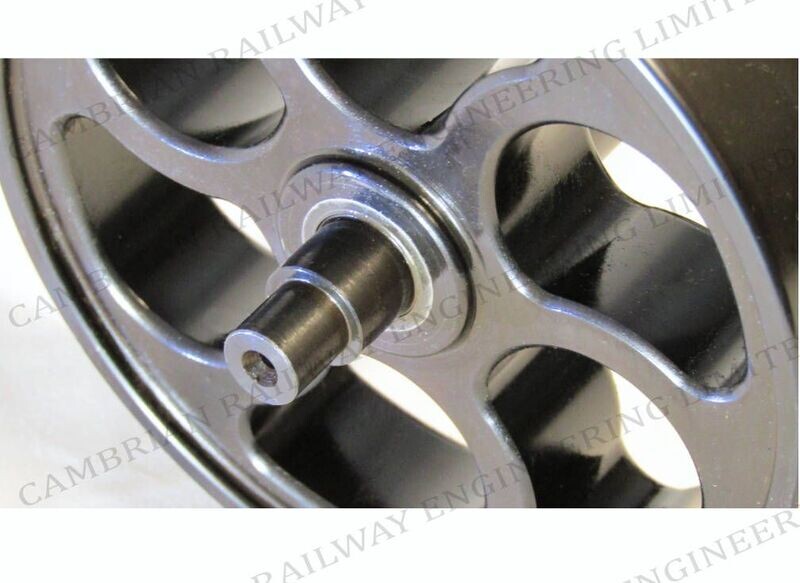

The wheels are pressed on to the axles with an interference fit and locked in place by our own unique design feature which guarantees there being no possibility of the wheels moving axially to cause a gauge error.

Our concentricity tolerances are extremely tight (within 0.0005"/.012mm) , this minimises vibration and therefore wear and maintenance on all components.

Why buy our wheels and axle assembly?

By purchasing this set we have no doubt you will have a set of superior, high performance wheels for your rolling stock.

Shipping: The complete assembly will be packaged in one box.

For estimated shipping costs please refer to the table in our Shipping Info page.

( found in the navigation "other" page or in the footer below ).
